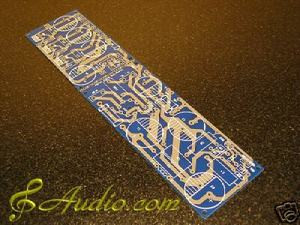

Tube Rectified Common Power Supply Bare PCB for Pre-amp

$8.00

Tube Rectified Common Power Supply Bare PCB for Pre-amp

$8.00
Weight:
150.00 Grams
Shipping:
$8.00 (Fixed shipping cost)
Quantity:
Share

Product Description

?
Descriptions Payments Shipping Policy About Us
Descriptions

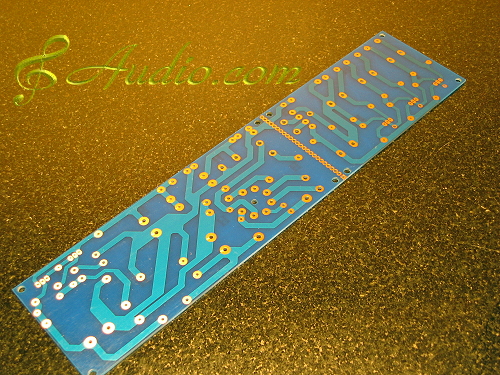

Tube Rectified Common Used Power Supply Bare PCB for various PreAmp DIY

(Tube rectified design)



The following picture is an example showing a finish Power Supply board for a JP200 Pre-amp which is also available in my Mall



Features:

This Power Supply Bare PCB is specially designed for our serires of Tube Pre-Amplifier DIY board.

  • Ideal for supplying very high quality clean power to the our series of pre-amp board.
  • Specially deisgned circuit to ensure the dynamic and details in premap output.
  • High quality of workmanship
  • Use 6X4(not included) tube rectifier to preserve the beauty of tube sound
  • Power Transformer and choke use for this power supply board are also available in our Mall
  • Design with regulated high voltage supply source to B+ and up to 3 sets of independently regulated filament power source to tube heaters.
  • Come with circuit wiring schematic. (All our pre-amp board are come with power supply circuit diagram to show what componentd to be used on this PCB to give the required B+ and filament volatge.)
  • Size: 63mmW x 266mmL x 2mmThick
  • Finish Power Supply Board for various Pre-amp Board are also available in our Mall.



Important:

This product is only for DIYER with sufficient knowledge in electricity and know how to avoide danger from electic shock.
