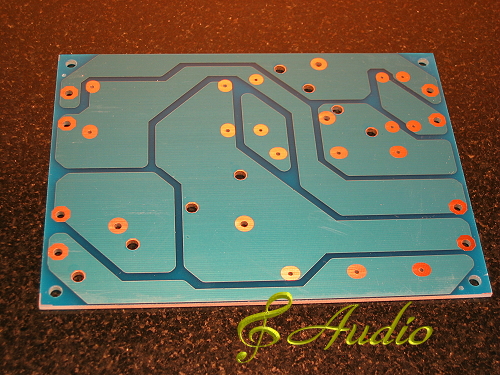

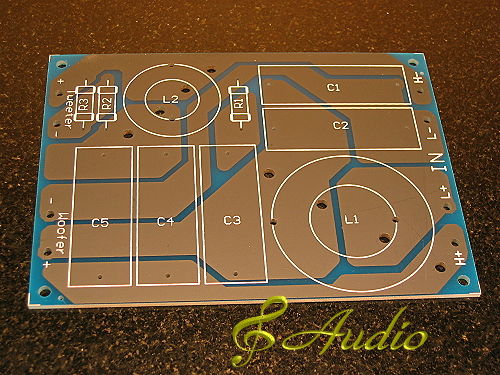

2pcs General Purpose DIY Speaker Crossover / Filter Bare PCB

(Components not inclued)

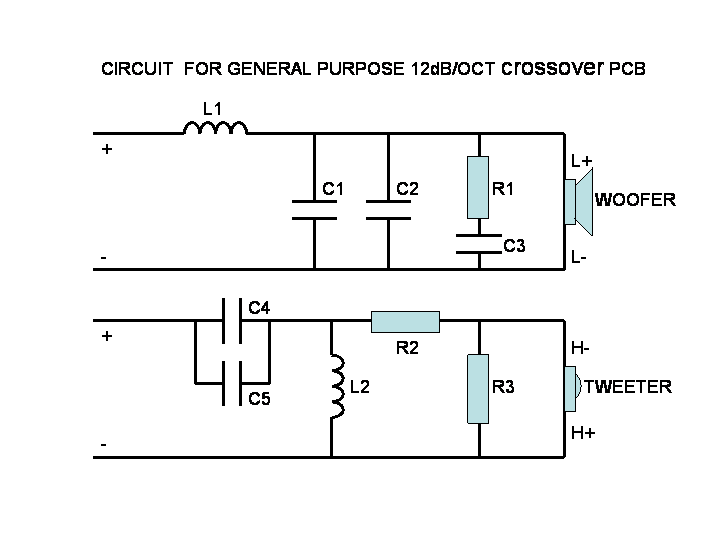

(The follow photo shows the general crossover circuit used in this PCB, use can select their component to fit their applications)


Features:

This bare Print Circuit Board is for Speaker DIYer.

• General Purpose Crossover Circuit
• High quality of workmanship
• Holes provided on PCB for fastening inductors
• Thick PCB layer to adopt high current flow
• Size : 148mm  x 110mm
• 2.5mm thick PCB
• See more DIY speaker accessories in my Mall.


Important:

This product is only for DIYER with sufficient knowledge in electricity and know how to avoide danger from electic shock.
