8Audio

Single End Tube Head Phone Amp Kit - Plug and Play

$88.00

Single End Tube Head Phone Amp Kit - Plug and Play

$88.00
Weight:
0.00 Grams
Shipping:
$24.00 (Fixed shipping cost)
Quantity:
Share

Product Description

?
Descriptions

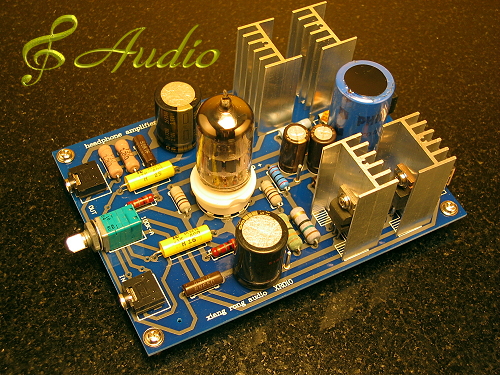

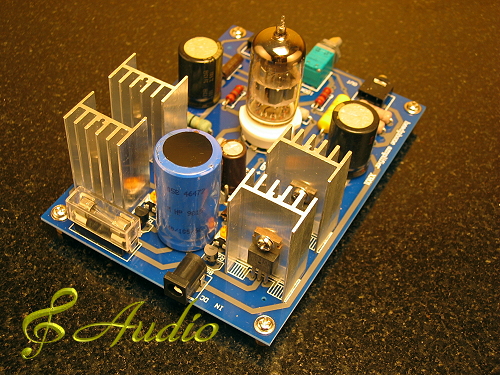

Single End Tube Headphone Amplifier Kit -Ready to play

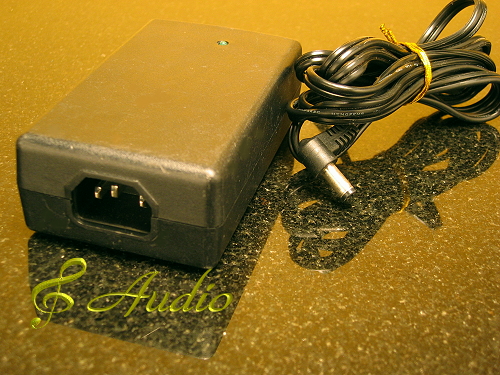

(Tubes and power supply inclued)






(Bare PCB also available in our Mall)

Features:

This Finished Kit is for Tube Headphone Amplifier DIYer specially design to operated in much less harmful 24V-DC supplied by modular switching mode power supply. Hence very suitable for Beginner.

  • Proven circuit design
  • High quality component and workmanship
  • Use 1 pcs 6DJ8 tube(included in the kit) that can be operated in relatively low voltage with excellent sound.
  • Play immediately by plug in power,  input source and ear phone.
  • Single end design to perserve the essents of tube sound(Air, details, width and depth of sound)
  • On-off Volume knob, input and headphone and DC power supply socket ready on the PCB.
  • Size : 136mm  x 98mm x 70 mm height
  • Thick PCB
  • Come with circuit wiring schematic and power supply.
  • Bare PCB and switching power supply are also available in our Mall.



Technical Details:

  • Output voltage swing: 15V PP
  • Output noise level: <0.1MV A weighted
  • Input impedance:100K
  • Output impedance: 32ohm-300ohm
  • Matching head phone impedance: 32ohm-300ohm
  • Freq response10HZ-100KHZ (+ - 1dB )
  • Gain: 25dB
  • Power supply; 24V-35V dc



Important:

This product is only for DIYER with sufficient knowledge in electricity and know how to avoide danger from electic shock.



?
