EL34 Tube Amp Bare PCB - Upgraded design of Jadis JA30

$22.00

EL34 Tube Amp Bare PCB - Upgraded design of Jadis JA30

$22.00
Weight:
0.00 Grams
Shipping:
$13.00 (Fixed shipping cost)
Quantity:
Share

Product Description

?
Descriptions

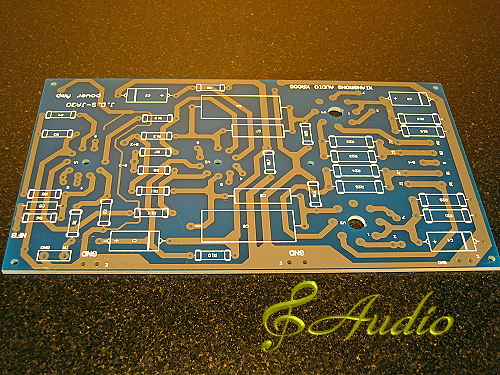

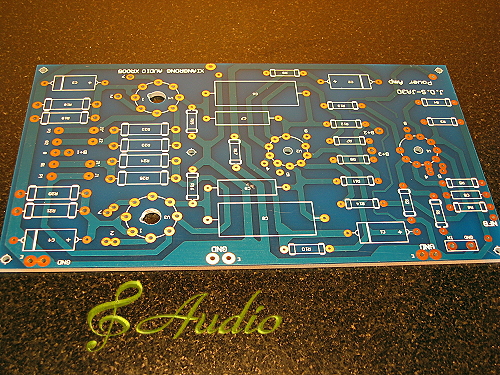

1 Pair Mono EL34 Push-Pull Tube Amp Bare Print Circuit Board with Upgraded design for Jardis JA30 DIYER

(Tubes and components not inclued)



The following picture is an example showing a finished product with enclosed casing design which is also available in my ebay store



Features:

These bare Print Circuit Board is for twin mono EL34 PP Amplifier DIYer.

  • With circuit design upgraded from famous original
  • High quality of workmanship
  • Output 30W+30W
  • Specially designed for DIYer such that soldering can be carried out in the component side of the print circuit board (no need to turn over the print circuit board for soldering)
  • Also a flexible design print circuit board that component can be soldered on opposite side of the tube socket to make a exposed tube casing design.
  • Use 2pcs EL34, 1pcs 12AU7 & 1pcs 12AX7/ECC83(not included) for each channel
  • Tube or Solid State rectified Power supply board (with regulated heater supply) specially designed for this EL34 power-amp are available in our Mall
  • Features: Fast response, dynamic, clear sound image, wide and deep sound stage
  • Size : 250mm  x 140mm
  • 3mm extra thick PCB
  • Come with circuit wiring schematic.
  • Finished PCB as well as Finished product are also available in our Mall



Important:

This product is only for DIYER with sufficient knowledge in electricity and know how to avoide danger from electic shock.



?
